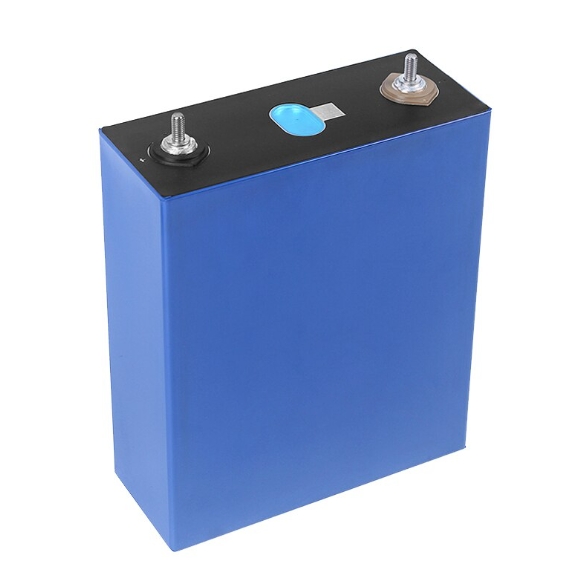

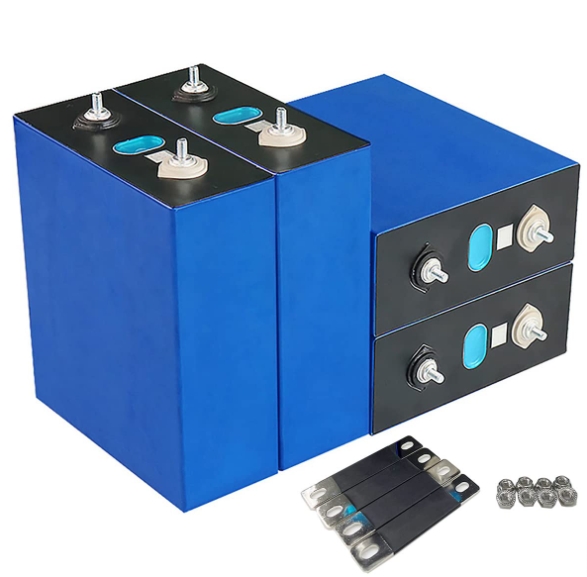

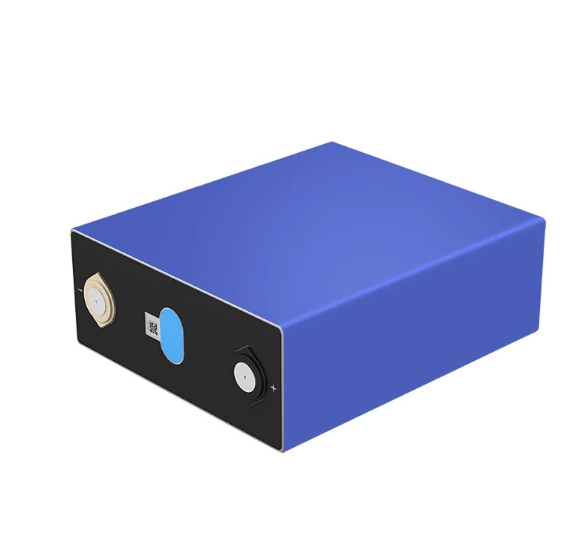

LF304 EVE 3.2V 304ah lifepo4 battery cell
LF304 Battery cell Datesheet
|
Battery Cell Type |
Lithium Iron Phosphate (LiFePO4) battery |
|
Model Number |
EVE-LF304 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
304Ah |
|
Cycle Life(25°C) |
>3500 cycles |
|
Cycle Life(45°C) |
>1800 cycles |
|
Working Voltage |
2.5-3.65V |
|
Internal Resistance |
≤ 0.5 mΩ |
|
End of discharge Voltage |
2.5V |
|
Charge Method |
CC/CV |
|
Standard charge and discharge Charge/Discharge Current |
0.5C/0.5C |
|
Continuous Charge/Discharge Current |
1C/1C |
|
Pulse Charge/Discharge Ccurrent（30s） |
2C/2C |
|
Recommended SOC window |
10%-90% |
|
Charging Working Temperature |
0℃-60℃ |
|
Discharging Working Temperature |
-30℃-60℃ |
|
Dimensions(mm) |
L173.5mm X W72.0mm X H208.8mm |
|
Weight |
5.49KGS |
|
Shell Material |
Aluminum |
