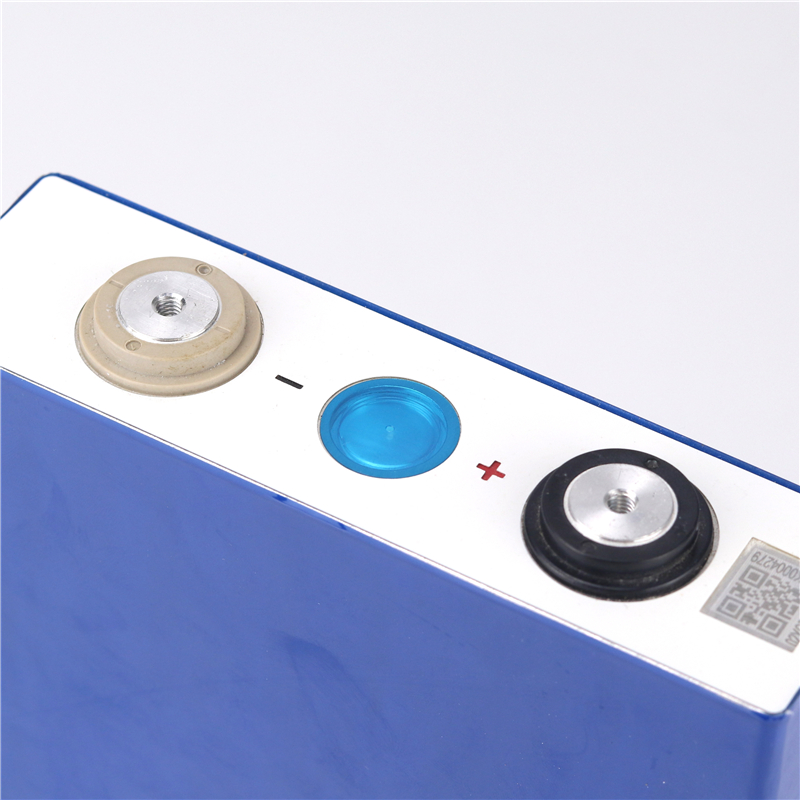

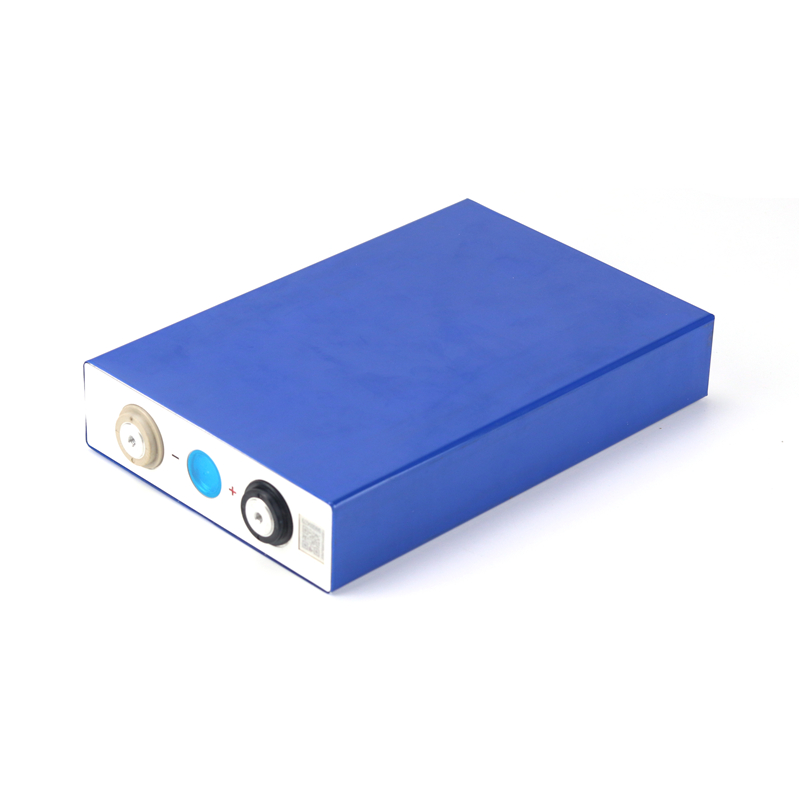

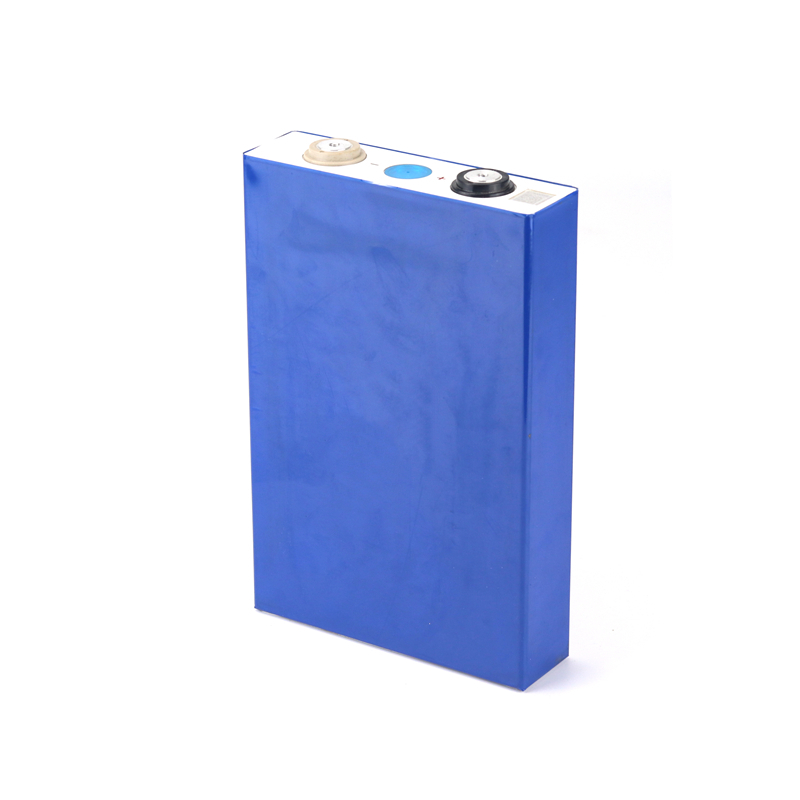

LF105 EVE 3.2V 105AH Lifepo4 battery cell
LF105 Battery cell Datesheet
|
Battery Cell Type |
Lithium Iron Phosphate (LiFePO4) battery |
|
Model Number |
EVE-105 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
105Ah |
|
Cycle Life |
>3500 cycles |
|
Working Voltage |
2.5-3.65V |
|
Internal Resistance |
≤ 0.5 mΩ |
|
End of discharge Voltage |
2.5V |
|
Charge Method |
0.5C (52.5A) CC/CV |
|
Max (Short)Pulse Discharge Current |
A/30S |
|
Dimensions(mm) |
L130mm X W36mm X H200mm |
|
Weight |
1.98±0.1KGS |
|
Shell Material |
Aluminum |
