117ah Battery cell Datesheet
Battery Cell Type |
Lithium NMC battery |
Model Number |
Svolt-117ah |
Nominal Voltage |
3.7V |
Nominal Capacity |
117Ah |
Cycle Life |
>2000 cycles |
Working Voltage |
2.5-4.4V |
Internal Resistance |
≤ 0.4 mΩ |
End of discharge Voltage |
2.5V |
Charge Method |
39A CC/CV |
Max (Short)Pulse Discharge Current |
880A/10S |

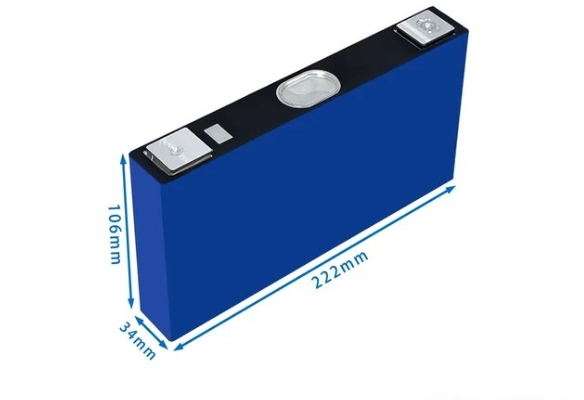

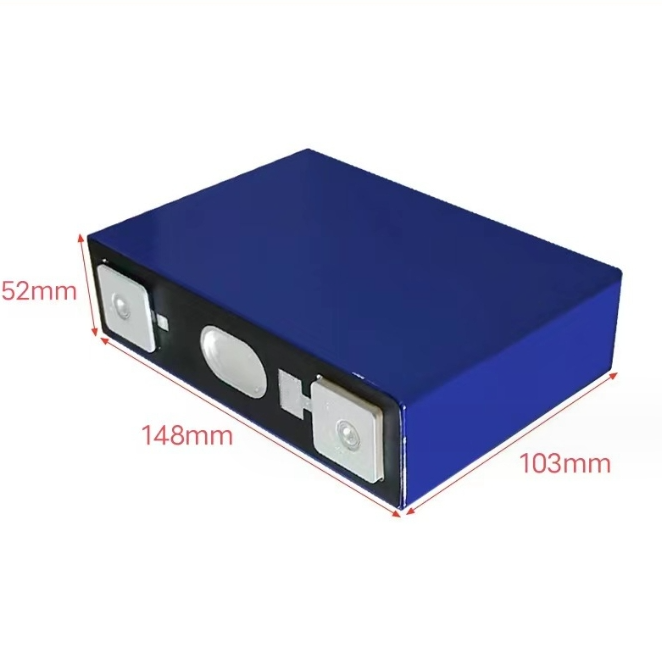

Dimensions(mm) |
L148mm X W52mm X H103mm L222mm*W34mm*H106mm |
Weight |
1.796±0.1KGS |
Shell Material |
Aluminum |
